前言
当前，即使是stable的内核，也不是零bug的。既然有bug，就会在使用时导致问题，严重的甚至会导致宕机。
在Liunx系统中，kdump绝对是排查宕机的好帮手。它的作用是把系统宕机时的内存dump出来，使人们可以根据dump文件分析宕机时的情况，查找宕机原因。
原理
简单来说，就是系统panic的时候，启动一个小内核，这个小内核启动成功之后会把当前的内存进行dump，形成一个vmcore文件。然后就可以通过这个vmcore文件来分析宕机时的情况。
至于panic之后，怎么启动小内核这些代码细节，后续再说（好吧，我还没看）。
配置kdump
kdump的配置主要就是两方面：预留内存+kdump服务
对于centos来说，需要在cmdline添加crashkernel=XXX参数，以便在系统启动时能够预留一部分内存用于kdump小内核启动；系统启动后，需要开启kdump服务，kdump服务的作用之一时会在/boot下制作kdump.img，这是小内核启动时会用的initramfs
对于ubuntu来说，与上面相同，但是服务名字是叫kdump-tools
kdump失败排查
在实际使用中，也许会发现，即使按照上面的内容进行了配置，系统宕机后，也看不到vmcore的产生，因此需要排查看dump为什么会失败？
kdump失败可以先尝试这两个操作(本人遇到的情况中，大多与这两个有关)：调大预留内存和重新制作kdump.img。如果排除这两个原因，再去继续尝试定位其他失败原因。
下面搞一个实际排查过程看一下：
背景

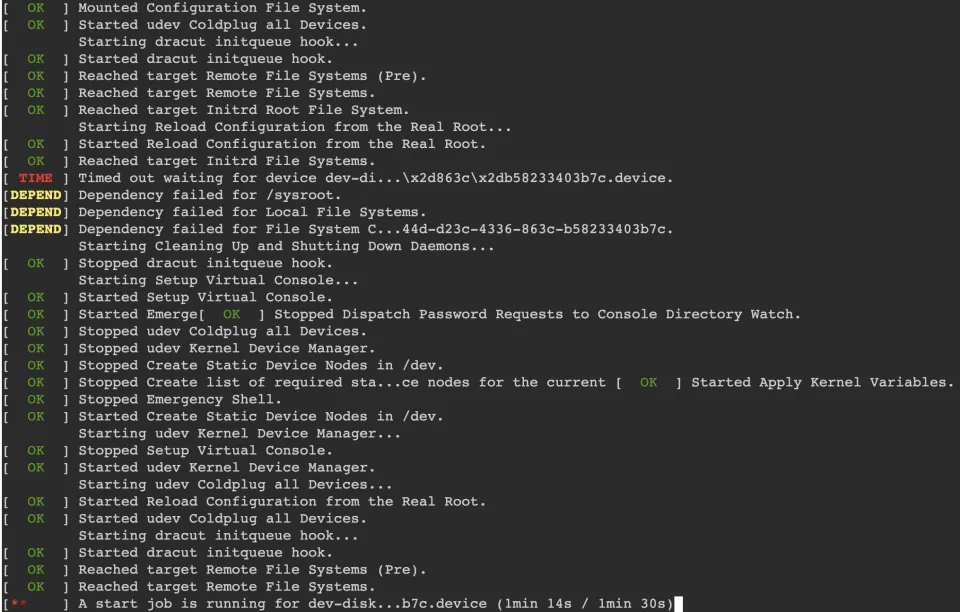

该问题的背景是，测试宕机的时候，发现没有生成vmcore，且宕机后不能恢复进到正常的系统中，看串口日志发现一直在下图中进行死循环
排查过程
是否进入小内核？
首先需要确认的就是，这个死循环是大内核还是小内核的呢？
通过一些日志及其他手段能够确认(在BMC发重启，能够正常进入系统，说明进入大内核的过程没问题；另外，通过串口日志的cmdline也能发现端倪，为了让小内核使用尽可能少的预留内存，在配置kdump过程中，会在cmdline添加一些blacklist，禁止加载一些驱动之类，所以大小内核启动时的cmdline是不同的)，这是进入小内核的死循环。
调大预留内存和重新制作kdump.img尝试
确认是能够成功进入小内核了，就该直接尝试上面提到的两板斧了。
经过尝试，没用。
串口日志分析
[32m OK [0m] Started Create Static Device Nodes in /dev.
Starting udev Kernel Device Manager...
[[32m OK [0m] Started udev Kernel Device Manager.
Starting udev Coldplug all Devices...
Mounting Configuration File System...
[[32m OK [0m] Mounted Configuration File System.
[[32m OK [0m] Started udev Coldplug all Devices.
Starting dracut initqueue hook...
[[32m OK [0m] Started dracut initqueue hook.
[[32m OK [0m] Reached target Remote File Systems (Pre).
[[32m OK [0m] Reached target Remote File Systems.
[[32m OK [0m] Reached target Initrd Root File System.
Starting Reload Configuration from the Real Root...
[[32m OK [0m] Started Reload Configuration from the Real Root.
[[32m OK [0m] Reached target Initrd File Systems.
[[0m[31m* [0m] A start job is running for dev-disk...233403b7c.device (5s / 1min 30s)
[K[[1;31m*[0m[31m* [0m] A start job is running for dev-disk...233403b7c.device (6s / 1min 30s)
[K[[31m*[1;31m*[0m[31m* [0m] A start job is running for dev-disk...233403b7c.device (6s / 1min 30s)
[K[ [31m*[1;31m*[0m[31m* [0m] A start job is running for dev-disk...233403b7c.device (7s / 1min 30s)
[K[ [31m*[1;31m*[0m[31m* [0m] A start job is running for dev-disk...233403b7c.device (7s / 1min 30s)
[K[ [31m*[1;31m*[0m[31m*[0m] A start job is running for dev-disk...233403b7c.device (8s / 1min 30s)
[K[ [31m*[1;31m*[0m] A start job is running for dev-disk...233403b7c.device (8s / 1min 30s)
[K[ [31m*[0m] A start job is running for dev-disk...233403b7c.device (9s / 1min 30s)
[K[ [31m*[1;31m*[0m] A start job is running for dev-disk...233403b7c.device (9s / 1min 30s)
[K[ [31m*[1;31m*[0m[31m*[0m] A start job is running for dev-disk...33403b7c.device (10s / 1min 30s)
[K[ [31m*[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (10s / 1min 30s)
[K[ [31m*[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (11s / 1min 30s)
[K[[31m*[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (11s / 1min 30s)
[K[[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (12s / 1min 30s)
[K[[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (12s / 1min 30s)
[K[[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (13s / 1min 30s)
[K[[31m*[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (13s / 1min 30s)
[K[ [31m*[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (14s / 1min 30s)
[K[ [31m*[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (14s / 1min 30s)
[K[ [31m*[1;31m*[0m[31m*[0m] A start job is running for dev-disk...33403b7c.device (15s / 1min 30s)
[K[ [31m*[1;31m*[0m] A start job is running for dev-disk...33403b7c.device (15s / 1min 30s)
[K[ [31m*[0m] A start job is running for dev-disk...33403b7c.device (16s / 1min 30s)
[K[ [31m*[1;31m*[0m] A start job is running for dev-disk...33403b7c.device (16s / 1min 30s)
[K[ [31m*[1;31m*[0m[31m*[0m] A start job is running for dev-disk...33403b7c.device (17s / 1min 30s)
[K[ [31m*[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (17s / 1min 30s)
[K[ [31m*[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (18s / 1min 30s)
[K[[31m*[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (18s / 1min 30s)
[K[[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (19s / 1min 30s)
[K[[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (19s / 1min 30s)
[K[[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (20s / 1min 30s)
[K[[31m*[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (20s / 1min 30s)
[K[ [31m*[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (21s / 1min 30s)
[K[ [31m*[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (21s / 1min 30s)
[K[ [31m*[1;31m*[0m[31m*[0m] A start job is running for dev-disk...33403b7c.device (22s / 1min 30s)
[K[ [31m*[1;31m*[0m] A start job is running for dev-disk...33403b7c.device (22s / 1min 30s)
[K[ [31m*[0m] A start job is running for dev-disk...33403b7c.device (23s / 1min 30s)
[K[ [31m*[1;31m*[0m] A start job is running for dev-disk...33403b7c.device (23s / 1min 30s)
[K[ [31m*[1;31m*[0m[31m*[0m] A start job is running for dev-disk...33403b7c.device (24s / 1min 30s)
[K[ [31m*[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (24s / 1min 30s)
[K[ [31m*[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (25s / 1min 30s)
[K[[31m*[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (25s / 1min 30s)
[K[[1;31m*[0m[31m* [0m] A start job is running for dev-disk...33403b7c.device (26s / 1min 30s)
分析一手串口日志，可以发现，这个死循环似乎是在进行盘相关的工作？dev-disk…33403b7c.device？？

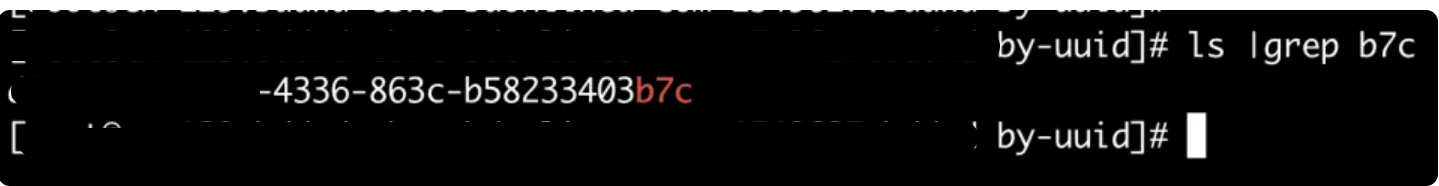

接下来正常进入系统，查一下有没有这个id？

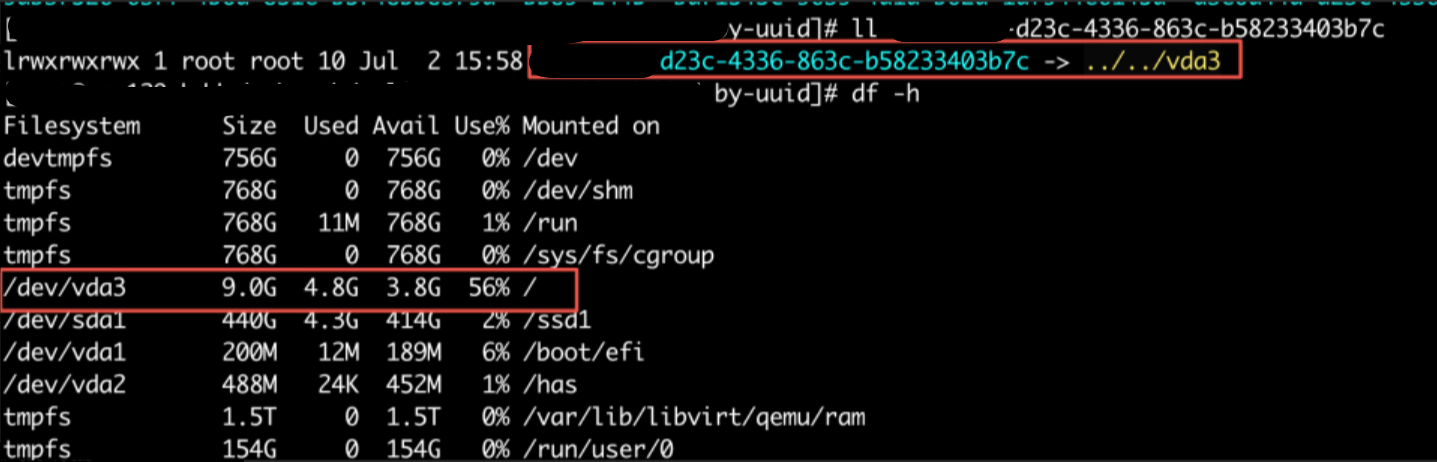

是有的，而且正巧这个盘就是系统盘
所以，这里我们就可以确定，这是小内核挂载系统盘失败，导致小内核启动失败，导致kdump失败
解包kdump.img查看
把异常机器的kdump.img解包，与正常能够kdump成功的机器上的kdump.img进行对比，发现没什么不同，所以这里就彻底排除了kdump.img的问题
那这里就有些怀疑，难不成，启动小内核的过程中，盘的uuid变了？导致fstab中的id识别不到了？
小内核断点
/etc/sysconfig/kdump中的cmdline添加rd.break=initqueue，然后再次触发宕机，这时候小内核应该就在死循环之前，进入emergency shell了，能够使用一些基础shell命令进行排查
在emergency shell中ls -l /dev/disk/by-uuid看一下，发现，根本就没有那个uuid对应的盘。
所以，不是系统盘的uuid变了，而是压根就没有识别到系统盘
为什么呢？因为我这个机器的系统盘是virtio-blk的云盘？
但是根据系统盘的pci bdf（从正常系统中可以拿到）能够看到已经加载了virtio-pci驱动，而且/sys/bus/pci/drivers可以看到virtio相关的驱动也都加载了
所以，这是udev的问题了？难不成是udev没有处理系统盘probe的时候发出的uevent？
重新绑定驱动实验
先看一个nvme盘的unbind bind的现象：可以看出，nvme盘unbind驱动之后，usr看不到了，重新bind之后，usr能看到这个设备了。符合预期
initqueue:/# ls /dev/disk/by-path -l
total 0
lrwxrwxrwx 1 root 0 13 Jul 3 03:51 pci-0000:01:00.0-nvme-1 -> ../../nvme0n1
lrwxrwxrwx 1 root 0 9 Jul 3 03:51 pci-0000:93:00.0-ata-1.0 -> ../../sda
lrwxrwxrwx 1 root 0 10 Jul 3 03:51 pci-0000:93:00.0-ata-1.0-part1 -> ../../sda1
lrwxrwxrwx 1 root 0 13 Jul 3 03:51 pci-0000:a7:00.0-nvme-1 -> ../../nvme1n1
initqueue:/sys/bus/pci/drivers/nvme# cd /sys/bus/pci/drivers/nvme
initqueue:/sys/bus/pci/drivers/nvme# ls
0000:01:00.0 0000:a7:00.0 bind module new_id remove_id uevent unbind
initqueue:/sys/bus/pci/drivers/nvme# echo 0000:01:00.0 > unbind
initqueue:/sys/bus/pci/drivers/nvme# ls /dev/disk/by-path/ -l
total 0
lrwxrwxrwx 1 root 0 9 Jul 3 03:52 pci-0000:93:00.0-ata-1.0 -> ../../sda
lrwxrwxrwx 1 root 0 10 Jul 3 03:52 pci-0000:93:00.0-ata-1.0-part1 -> ../../sda1
lrwxrwxrwx 1 root 0 13 Jul 3 03:52 pci-0000:a7:00.0-nvme-1 -> ../../nvme1n1
initqueue:/sys/bus/pci/drivers/nvme# echo 0000:01:00.0 > bind
initqueue:/sys/bus/pci/drivers/nvme# ls /dev/disk/by-path/ -l
total 0
lrwxrwxrwx 1 root 0 13 Jul 3 03:54 pci-0000:01:00.0-nvme-1 -> ../../nvme0n1
lrwxrwxrwx 1 root 0 9 Jul 3 03:54 pci-0000:93:00.0-ata-1.0 -> ../../sda
lrwxrwxrwx 1 root 0 10 Jul 3 03:54 pci-0000:93:00.0-ata-1.0-part1 -> ../../sda1
lrwxrwxrwx 1 root 0 13 Jul 3 03:54 pci-0000:a7:00.0-nvme-1 -> ../../nvme1n1
再来看系统云盘的过程(bdf可以从正常系统中获得)
initqueue:/# cd /sys/bus/pci/drivers/virtio-pci
initqueue:/sys/bus/pci/drivers/virtio-pci# ls
0000:1d:00.0 0000:21:00.0 bind module new_id remove_id uevent unbind
initqueue:/sys/bus/pci/drivers/virtio-pci# echo 0000:1d:00.0 > unbind
initqueue:/sys/bus/pci/drivers/virtio-pci# echo 0000:1d:00.0 > bind
initqueue:/sys/bus/pci/drivers/virtio-pci# ls /dev/disk/by-path -l
total 0
lrwxrwxrwx 1 root 0 13 Jul 3 03:55 pci-0000:01:00.0-nvme-1 -> ../../nvme0n1
lrwxrwxrwx 1 root 0 9 Jul 3 03:55 pci-0000:93:00.0-ata-1.0 -> ../../sda
lrwxrwxrwx 1 root 0 10 Jul 3 03:55 pci-0000:93:00.0-ata-1.0-part1 -> ../../sda1
lrwxrwxrwx 1 root 0 13 Jul 3 03:55 pci-0000:a7:00.0-nvme-1 -> ../../nvme1n1
手动bind驱动，也没有在usr层创建设备，为什么？
udevadm测试
先unbind virtio-pci驱动，然后使用udevadm monitor进行监控，然后再次bind驱动，发现，log中的内容是空的
initqueue:/# cd /sys/bus/pci/drivers/virtio-pci
initqueue:/sys/bus/pci/drivers/virtio-pci# echo 0000:1d:00.0 > unbind
udevadm monitor --property > log 2>&1 &
initqueue:/sys/bus/pci/drivers/virtio-pci# echo 0000:1d:00.0 > bind
对nvme盘进行上述相同的操作，可以抓到udev事件
说明udev就是没有收到uevent并处理，或者，驱动就没有发送uevent？
再看串口信息
initqueue:/# dmesg |grep -i blk -A 5 -B 5
[ 57.333334] xhci_hcd 0000:ec:00.4: request interrupt 251 failed
[ 57.333335] xhci_hcd 0000:ec:00.4: startup error -28
[ 57.333336] xhci_hcd 0000:ec:00.4: USB bus 3 deregistered
[ 57.334354] xhci_hcd 0000:ec:00.4: init 0000:ec:00.4 fail, -28
[ 57.334356] xhci_hcd: probe of 0000:ec:00.4 failed with error -28
[ 58.031020] virtio_blk virtio0: 1/0/0 default/read/poll queues ###############这里是init_vq打印的log
[ 58.031863] virtio_blk: probe of virtio0 failed with error -28
[ 61.036705] systemd-udevd (414) used greatest stack depth: 12288 bytes left
[ 145.292866] hugepage is reduced from total 503797 to 0
[ 235.510818] hugepage is reduced from total 503797 to 0
[ 325.783468] hugepage is reduced from total 503797 to 0
这里可以看到，之前忽略了一些log，virtio-blk驱动probe失败了！
但是驱动为什么probe失败呢？先看err code，-28，ENOSPC，No space left on device
但是，大概看了一下，实在不能确定是哪里返回了ENOSPC
添加debug信息重编virtio-blk
如此，只能往virtblk_probe函数中加点debug日志然后添加到host内核，然后重做kdump.img，看一下能不能缩小排查范围了，过程如下：
先在virtblk_probe函数中每个err后都添加debug信息，重编virtio-blk模块
到异常机器查找find /usr/lib/modules/uname -r -name virtio_blk.ko找到模块位置，备份，然后用新模块替换
删除旧的kdump.img并制作重启kdump服务以制作新的kdump.img
再次宕机进入小内核，查看dmesg
initqueue:/# dmesg |grep blk
[ 56.909688] virtio_blk: loading out-of-tree module taints kernel.
[ 56.910275] virtio_blk virtio0: 1/0/0 default/read/poll queues
[ 56.911186] virtio_blk virtio0: init_vq err is -28
[ 56.911188] virtio_blk: probe of virtio0 failed with error -28
如此，可以确定，就是virtblk_probe->init_vq这里失败了，导致驱动probe失败
追踪代码
通过查看init_vq函数体，可以明显发现，只有两处为err=赋返回值的，一处在virtio_cread_feature，一处在virtio_find_vqs
而virtio_cread_feature处失败是绝对不可能的，可以看到，如果这里失败的话，就不可能会在dmesg中打印后面的default/read/poll queues log了
err = virtio_cread_feature(vdev, VIRTIO_BLK_F_MQ,
struct virtio_blk_config, num_queues,
&num_vqs);
if (err)
num_vqs = 1;
if (!err && !num_vqs) {
dev_err(&vdev->dev, "MQ advertised but zero queues reported\n");
return -EINVAL;
}
....
dev_info(&vdev->dev, "%d/%d/%d default/read/poll queues\n",
vblk->io_queues[HCTX_TYPE_DEFAULT],
vblk->io_queues[HCTX_TYPE_READ],
vblk->io_queues[HCTX_TYPE_POLL]);
所以，真相只有一个，那就是在virtio_find_vqs失败了
static inline
int virtio_find_vqs(struct virtio_device *vdev, unsigned nvqs,
struct virtqueue *vqs[], vq_callback_t *callbacks[],
const char * const names[],
struct irq_affinity *desc)
{
return vdev->config->find_vqs(vdev, nvqs, vqs, callbacks, names, NULL, desc);
}
而这里可以看到其实是调用的config->find_vqs，经过查找，这里应该是vp_find_vqs或vp_modern_find_vqs
大致看了下这俩函数，不管legacy还是modern的吧，出错应该都是在调用vp_find_vqs函数中失败的
int vp_find_vqs(struct virtio_device *vdev, unsigned int nvqs,
struct virtqueue *vqs[], vq_callback_t *callbacks[],
const char * const names[], const bool *ctx,
struct irq_affinity *desc)
{
int err;
/* Try MSI-X with one vector per queue. */
err = vp_find_vqs_msix(vdev, nvqs, vqs, callbacks, names, true, ctx, desc);
if (!err)
return 0;
/* Fallback: MSI-X with one vector for config, one shared for queues. */
err = vp_find_vqs_msix(vdev, nvqs, vqs, callbacks, names, false, ctx, desc);
if (!err)
return 0;
/* Is there an interrupt? If not give up. */
if (!(to_vp_device(vdev)->pci_dev->irq))
return err;
/* Finally fall back to regular interrupts. */
return vp_find_vqs_intx(vdev, nvqs, vqs, callbacks, names, ctx);
}
这个看上去应该是分配中断之类的？按照函数体，应该是vp_find_vqs_msix、vp_find_vqs_msix……一路失败，走到最后，只能return vp_find_vqs_intx，但是没想到这个也失败了，返回了ENOSPC
其实看这个意思，只要这些函数里能成功一个，能申请到中断就好，但是小内核中一个也没有成功
看一下这个函数
static int vp_find_vqs_intx(struct virtio_device *vdev, unsigned int nvqs,
struct virtqueue *vqs[], vq_callback_t *callbacks[],
const char * const names[], const bool *ctx)
{
struct virtio_pci_device *vp_dev = to_vp_device(vdev);
int i, err, queue_idx = 0;
vp_dev->vqs = kcalloc(nvqs, sizeof(*vp_dev->vqs), GFP_KERNEL);
if (!vp_dev->vqs)
return -ENOMEM;
err = request_irq(vp_dev->pci_dev->irq, vp_interrupt, IRQF_SHARED,
dev_name(&vdev->dev), vp_dev);
if (err)
goto out_del_vqs;
vp_dev->intx_enabled = 1;
vp_dev->per_vq_vectors = false;
for (i = 0; i < nvqs; ++i) {
if (!names[i]) {
vqs[i] = NULL;
continue;
}
vqs[i] = vp_setup_vq(vdev, queue_idx++, callbacks[i], names[i],
ctx ? ctx[i] : false,
VIRTIO_MSI_NO_VECTOR);
if (IS_ERR(vqs[i])) {
err = PTR_ERR(vqs[i]);
goto out_del_vqs;
}
}
return 0;
out_del_vqs:
vp_del_vqs(vdev);
return err;
}
很明显，只有可能是request_irq失败啦，而request_irq其实是调用request_threaded_irq
不过再往下又不好分析了
好在，debugfs还是能mount上的，mount -t debugfs none /sys/kernel/debug
然后function_graph抓一下request_threaded_irq，如下
initqueue:/# cat log
# tracer: function_graph
#
# CPU DURATION FUNCTION CALLS
# | | | | | | |
0) | request_threaded_irq() {
0) 0.381 us | irq_to_desc();
0) | kmalloc_trace() {
0) | __kmem_cache_alloc_node() {
0) 0.080 us | should_failslab();
0) 0.240 us | }
0) 0.491 us | }
0) 0.080 us | irq_chip_pm_get();
0) | __setup_irq() {
0) 0.070 us | try_module_get();
0) 0.091 us | mutex_lock();
0) | _raw_spin_lock_irqsave() {
0) 0.100 us | preempt_count_add();
0) 0.250 us | }
0) | irq_activate() {
0) | irq_domain_activate_irq() {
0) | __irq_domain_activate_irq() {
0) | __irq_domain_activate_irq() {
0) | __irq_domain_activate_irq() {
0) | x86_vector_activate() {
0) 0.060 us | apic_chip_data.part.23();
0) | _raw_spin_lock_irqsave() {
0) 0.070 us | preempt_count_add();
0) 0.200 us | }
0) 0.061 us | apic_chip_data.part.23();
0) | assign_irq_vector_any_locked() {
0) | assign_vector_locked() {
0) 0.070 us | apic_chip_data.part.23();
0) 0.120 us | irq_matrix_alloc();
0) 0.441 us | }
0) | assign_vector_locked() {
0) 0.071 us | apic_chip_data.part.23();
0) 0.090 us | irq_matrix_alloc();
0) 0.331 us | }
0) 1.022 us | }
0) | _raw_spin_unlock_irqrestore() {
0) 0.061 us | preempt_count_sub();
0) 0.191 us | }
0) 1.915 us | }
0) 2.065 us | }
0) 2.175 us | }
0) 2.385 us | }
0) 2.506 us | }
0) 2.646 us | }
0) | _raw_spin_unlock_irqrestore() {
0) 0.090 us | preempt_count_sub();
0) 0.250 us | }
0) 0.080 us | mutex_unlock();
0) 0.080 us | module_put();
0) 4.189 us | }
0) 0.091 us | irq_chip_pm_put();
0) 0.090 us | kfree();
0) | kfree() {
0) 0.191 us | __kmem_cache_free();
0) 0.341 us | }
0) 7.898 us | }
retval = __setup_irq(irq, desc, action);
if (retval) {
irq_chip_pm_put(&desc->irq_data);
kfree(action->secondary);
kfree(action);
}
能够明显看到，__setup_irq之后去调用irq_chip_pm_put，这说明这时候retval肯定就是那个ENOSPC了
对着这个trace再看一下，这里看上去就是分irq分不出来了，看irq_matrix_alloc有没有ENOSPC？
int irq_matrix_alloc(struct irq_matrix *m, const struct cpumask *msk,
bool reserved, unsigned int *mapped_cpu)
{
unsigned int cpu, bit;
struct cpumap *cm;
/*
* Not required in theory, but matrix_find_best_cpu() uses
* for_each_cpu() which ignores the cpumask on UP .
*/
if (cpumask_empty(msk))
return -EINVAL;
cpu = matrix_find_best_cpu(m, msk);
if (cpu == UINT_MAX)
return -ENOSPC;
cm = per_cpu_ptr(m->maps, cpu);
bit = matrix_alloc_area(m, cm, 1, false);
if (bit >= m->alloc_end)
return -ENOSPC;
cm->allocated++;
cm->available--;
m->total_allocated++;
m->global_available--;
if (reserved)
m->global_reserved--;
*mapped_cpu = cpu;
trace_irq_matrix_alloc(bit, cpu, m, cm);
return bit;
}
再看一下当前的中断情况
initqueue:/# cat /proc/interrupts
CPU0
0: 67 IR-IO-APIC 2-edge timer
4: 7480 IR-IO-APIC 4-edge ttyS0
8: 1 IR-IO-APIC 8-edge rtc0
9: 0 IR-IO-APIC 9-fasteoi acpi
29: 0 IOMMU-MSI 0-edge AMD-Vi
30: 0 IOMMU-MSI 0-edge AMD-Vi
31: 0 IOMMU-MSI 0-edge AMD-Vi
32: 0 IOMMU-MSI 0-edge AMD-Vi
33: 0 IOMMU-MSI 0-edge AMD-Vi
34: 0 IOMMU-MSI 0-edge AMD-Vi
35: 0 IOMMU-MSI 0-edge AMD-Vi
36: 0 IOMMU-MSI 0-edge AMD-Vi
38: 0 IR-PCI-MSI 6144-edge PCIe PME
39: 0 IR-PCI-MSI 18432-edge PCIe PME, pciehp
40: 0 IR-PCI-MSI 20480-edge PCIe PME, pciehp
41: 0 IR-PCI-MSI 22528-edge PCIe PME, pciehp
42: 0 IR-PCI-MSI 24576-edge PCIe PME, pciehp
43: 0 IR-PCI-MSI 116736-edge PCIe PME
44: 0 IR-PCI-MSI 118784-edge PCIe PME
46: 0 IR-PCI-MSI 13637632-edge PCIe PME
47: 0 IR-PCI-MSI 13682688-edge PCIe PME
49: 0 IR-PCI-MSI 13748224-edge PCIe PME
51: 1 IR-PCI-MSI 14680064-edge pciehp
52: 1 IR-PCI-MSI 14696448-edge pciehp
54: 1 IR-PCI-MSI 14712832-edge pciehp
55: 6 IR-PCI-MSI 14729216-edge pciehp
56: 6 IR-PCI-MSI 14745600-edge pciehp
57: 6 IR-PCI-MSI 14761984-edge pciehp
58: 6 IR-PCI-MSI 14778368-edge pciehp
59: 6 IR-PCI-MSI 14794752-edge pciehp
60: 6 IR-PCI-MSI 14811136-edge pciehp
61: 6 IR-PCI-MSI 14827520-edge pciehp
62: 6 IR-PCI-MSI 14843904-edge pciehp
63: 6 IR-PCI-MSI 14860288-edge pciehp
64: 6 IR-PCI-MSI 14876672-edge pciehp
65: 6 IR-PCI-MSI 14893056-edge pciehp
66: 6 IR-PCI-MSI 14909440-edge pciehp
67: 1 IR-PCI-MSI 14925824-edge pciehp
68: 1 IR-PCI-MSI 14942208-edge pciehp
69: 6 IR-PCI-MSI 14958592-edge pciehp
70: 6 IR-PCI-MSI 14974976-edge pciehp
71: 6 IR-PCI-MSI 14991360-edge pciehp
72: 6 IR-PCI-MSI 15007744-edge pciehp
73: 6 IR-PCI-MSI 15024128-edge pciehp
74: 6 IR-PCI-MSI 15040512-edge pciehp
75: 6 IR-PCI-MSI 15056896-edge pciehp
76: 6 IR-PCI-MSI 15073280-edge pciehp
77: 6 IR-PCI-MSI 15089664-edge pciehp
78: 6 IR-PCI-MSI 15106048-edge pciehp
79: 6 IR-PCI-MSI 15122432-edge pciehp
80: 6 IR-PCI-MSI 15138816-edge pciehp
81: 6 IR-PCI-MSI 15155200-edge pciehp
82: 6 IR-PCI-MSI 15171584-edge pciehp
83: 6 IR-PCI-MSI 15187968-edge pciehp
84: 6 IR-PCI-MSI 26738688-edge pciehp
85: 6 IR-PCI-MSI 26755072-edge pciehp
86: 6 IR-PCI-MSI 26771456-edge pciehp
87: 6 IR-PCI-MSI 26787840-edge pciehp
88: 6 IR-PCI-MSI 26804224-edge pciehp
89: 6 IR-PCI-MSI 26820608-edge pciehp
90: 6 IR-PCI-MSI 26836992-edge pciehp
91: 6 IR-PCI-MSI 26853376-edge pciehp
92: 6 IR-PCI-MSI 26869760-edge pciehp
93: 6 IR-PCI-MSI 26886144-edge pciehp
94: 6 IR-PCI-MSI 26902528-edge pciehp
95: 6 IR-PCI-MSI 26918912-edge pciehp
96: 6 IR-PCI-MSI 26935296-edge pciehp
97: 6 IR-PCI-MSI 26951680-edge pciehp
98: 6 IR-PCI-MSI 26968064-edge pciehp
99: 6 IR-PCI-MSI 26984448-edge pciehp
100: 6 IR-PCI-MSI 27000832-edge pciehp
101: 6 IR-PCI-MSI 27017216-edge pciehp
102: 6 IR-PCI-MSI 27033600-edge pciehp
103: 6 IR-PCI-MSI 27049984-edge pciehp
104: 6 IR-PCI-MSI 27066368-edge pciehp
105: 6 IR-PCI-MSI 27082752-edge pciehp
106: 6 IR-PCI-MSI 27099136-edge pciehp
107: 6 IR-PCI-MSI 27115520-edge pciehp
108: 6 IR-PCI-MSI 27131904-edge pciehp
109: 6 IR-PCI-MSI 27148288-edge pciehp
110: 6 IR-PCI-MSI 27164672-edge pciehp
111: 6 IR-PCI-MSI 27181056-edge pciehp
112: 6 IR-PCI-MSI 27197440-edge pciehp
113: 6 IR-PCI-MSI 27213824-edge pciehp
114: 6 IR-PCI-MSI 27230208-edge pciehp
116: 0 IR-PCI-MSI 62396416-edge PCIe PME
117: 0 IR-PCI-MSI 62441472-edge PCIe PME, pciehp
118: 0 IR-PCI-MSI 62443520-edge PCIe PME, pciehp
119: 0 IR-PCI-MSI 62445568-edge PCIe PME, pciehp
120: 0 IR-PCI-MSI 62447616-edge PCIe PME, pciehp
122: 0 IR-PCI-MSI 62507008-edge PCIe PME
124: 0 IR-PCI-MSI 74979328-edge PCIe PME
125: 0 IR-PCI-MSI 75059200-edge PCIe PME
126: 0 IR-PCI-MSI 75089920-edge PCIe PME
127: 0 IR-PCI-MSI 75091968-edge PCIe PME
129: 0 IR-PCI-MSI 87037952-edge PCIe PME
130: 0 IR-PCI-MSI 87050240-edge PCIe PME, pciehp
131: 0 IR-PCI-MSI 87052288-edge PCIe PME, pciehp
132: 0 IR-PCI-MSI 87054336-edge PCIe PME, pciehp
133: 0 IR-PCI-MSI 87056384-edge PCIe PME, pciehp
134: 0 IR-PCI-MSI 87148544-edge PCIe PME
135: 0 IR-PCI-MSI 87150592-edge PCIe PME
137: 0 IR-PCI-MSI 100145152-edge PCIe PME
138: 0 IR-PCI-MSI 100194304-edge PCIe PME, pciehp
139: 0 IR-PCI-MSI 100196352-edge PCIe PME, pciehp
141: 0 IR-PCI-MSI 100255744-edge PCIe PME
143: 0 IR-PCI-MSI 111679488-edge PCIe PME
145: 0 IR-PCI-MSI 111790080-edge PCIe PME
147: 0 IR-PCI-MSI 122165248-edge PCIe PME
148: 0 IR-PCI-MSI 122179584-edge PCIe PME, pciehp
149: 0 IR-PCI-MSI 122181632-edge PCIe PME, pciehp
150: 0 IR-PCI-MSI 122275840-edge PCIe PME
151: 0 IR-PCI-MSI 122277888-edge PCIe PME
153: 8 IR-PCI-MSI 524288-edge nvme0q0
155: 0 IR-PCI-MSI 3145728-edge ahci0
156: 0 IR-PCI-MSI 3145729-edge ahci1
157: 0 IR-PCI-MSI 3145730-edge ahci2
158: 0 IR-PCI-MSI 3145731-edge ahci3
159: 0 IR-PCI-MSI 3145732-edge ahci4
160: 0 IR-PCI-MSI 3145733-edge ahci5
161: 0 IR-PCI-MSI 3145734-edge ahci6
162: 0 IR-PCI-MSI 3145735-edge ahci7
172: 8 IR-PCI-MSI 87556096-edge nvme1q0
173: 3165 IR-PCI-MSI 524289-edge nvme0q1
174: 3165 IR-PCI-MSI 87556097-edge nvme1q1
176: 0 IR-PCI-MSI 3147776-edge ahci0
177: 0 IR-PCI-MSI 3147777-edge ahci1
178: 0 IR-PCI-MSI 3147778-edge ahci2
179: 0 IR-PCI-MSI 3147779-edge ahci3
180: 0 IR-PCI-MSI 3147780-edge ahci4
181: 0 IR-PCI-MSI 3147781-edge ahci5
182: 0 IR-PCI-MSI 3147782-edge ahci6
183: 0 IR-PCI-MSI 3147783-edge ahci7
193: 1549 IR-PCI-MSI 77070336-edge ahci0
195: 0 IR-PCI-MSI 77070338-edge ahci2
196: 0 IR-PCI-MSI 77070339-edge ahci3
197: 0 IR-PCI-MSI 77070340-edge ahci4
198: 0 IR-PCI-MSI 77070341-edge ahci5
199: 0 IR-PCI-MSI 77070342-edge ahci6
200: 0 IR-PCI-MSI 77070343-edge ahci7
210: 0 IR-PCI-MSI 77072384-edge ahci0
211: 0 IR-PCI-MSI 77072385-edge ahci1
212: 0 IR-PCI-MSI 77072386-edge ahci2
213: 0 IR-PCI-MSI 77072387-edge ahci3
214: 0 IR-PCI-MSI 77072388-edge ahci4
215: 0 IR-PCI-MSI 77072389-edge ahci5
216: 0 IR-PCI-MSI 77072390-edge ahci6
217: 0 IR-PCI-MSI 77072391-edge ahci7
227: 0 IR-PCI-MSI 90177536-edge ahci0
228: 0 IR-PCI-MSI 90177537-edge ahci1
229: 0 IR-PCI-MSI 90177538-edge ahci2
230: 0 IR-PCI-MSI 90177539-edge ahci3
231: 0 IR-PCI-MSI 90177540-edge ahci4
232: 0 IR-PCI-MSI 90177541-edge ahci5
233: 0 IR-PCI-MSI 90177542-edge ahci6
234: 0 IR-PCI-MSI 90177543-edge ahci7
244: 0 IR-PCI-MSI 90179584-edge ahci[0000:ac:00.1]
246: 0 IR-PCI-MSI 124256256-edge ahci[0000:ed:00.0]
248: 0 IR-PCI-MSI 124258304-edge ahci[0000:ed:00.1]
250: 0 IR-PCI-MSI 2629632-edge xhci_hcd
NMI: 2 Non-maskable interrupts
LOC: 87976 Local timer interrupts
SPU: 0 Spurious interrupts
PMI: 2 Performance monitoring interrupts
IWI: 0 IRQ work interrupts
RTR: 0 APIC ICR read retries
RES: 0 Rescheduling interrupts
CAL: 0 Function call interrupts
TLB: 0 TLB shootdowns
TRM: 0 Thermal event interrupts
THR: 0 Threshold APIC interrupts
DFR: 0 Deferred Error APIC interrupts
MCE: 0 Machine check exceptions
MCP: 0 Machine check polls
ERR: 0
MIS: 0
PIN: 0 Posted-interrupt notification event
NPI: 0 Nested posted-interrupt event
PIW: 0 Posted-interrupt wakeup event
vector_matrix = irq_alloc_matrix(NR_VECTORS, FIRST_EXTERNAL_VECTOR,
FIRST_SYSTEM_VECTOR);
irq_alloc_matrix设置m->alloc_end为FIRST_SYSTEM_VECTOR
可以看到在irq_matrix_alloc的比较里，是比较的bit和m->alloc_end
#ifdef CONFIG_X86_LOCAL_APIC
#define FIRST_SYSTEM_VECTOR LOCAL_TIMER_VECTOR
#else
#define FIRST_SYSTEM_VECTOR NR_VECTORS
#endif
我们配置了CONFIG_X86_LOCAL_APIC，所以
#define LOCAL_TIMER_VECTOR 0xec
也就是m->alloc_end是0xec，即236？
所以，这里就可以得出结论：virtio blk设备申请中断，分配失败，返回了ENOSPC，导致系统盘没有成功挂上，导致小内核启动失败。而中断向量不足的根因就是：kdump小内核的cmdline中配置了nr_cpus=1即使用一个cpu启动，所以所有设备中断全都分配到这一个cpu上，导致本cpu的中断向量不足够分配了
所以解决方法也简单，多使用几个cpu启动小内核就好了
后续
一个有用的网站：https://fedoraproject.org/wiki/How_to_debug_Dracut_problems
介绍了一些debug dracut的方法，看上去比较有用的有这几种:
##把这个添加到cmdline，如果找不到根，会显示shell
rd.shell
##这个是真滴强，感谢这个，让我定位了上面的问题
##把这个加到cmdline中，可以在指定的阶段断点，进入emergency shell中，进行调试
##可以使用egrep 'rd.?break' /usr/lib/dracut/modules.d/99base/init.sh来确定支持的断点
rd.break=[cmdline|pre-udev|pre-trigger|initqueue|pre-mount|mount|pre-pivot|cleanup]
另外，对于kdump的调试，比如，进入断点的shell中只能使用一些基础命令，如果想使用一些高级命令该怎么做呢？这个可以看一下/etc/kdump.conf中的extra_bins，这个看上去是可以把一些binary打包到kdump.img中，看上去挺实用的，虽然我尝试传入lspci失败了
转载请注明来源，欢迎对文章中的引用来源进行考证，欢迎指出任何有错误或不够清晰的表达。可以在下面评论区评论，也可以邮件至 857879363@qq.com
